The truck aftermarket industry is witnessing a seismic shift toward customized lighting solutions, with dual-color taillights emerging as a top trend. Unlike traditional single-color lenses or glued assemblies, dual-color injection molding fuses red and transparent sections into a single, seamless unit. This technology eliminates adhesives, reduces part failure, and enables complex geometries—critical for modern truck designs demanding both aesthetic appeal and structural integrity. Major retailers like RealTruck now leverage 3D configurators to showcase these advanced lenses, reflecting surging consumer interest in integrated lighting systems.
Core Technology: How Dual-Color Molding Works
1. Precision Rotational Mechanics

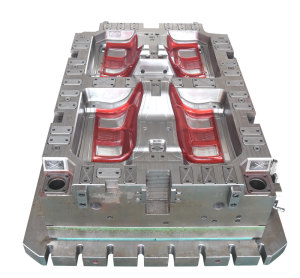

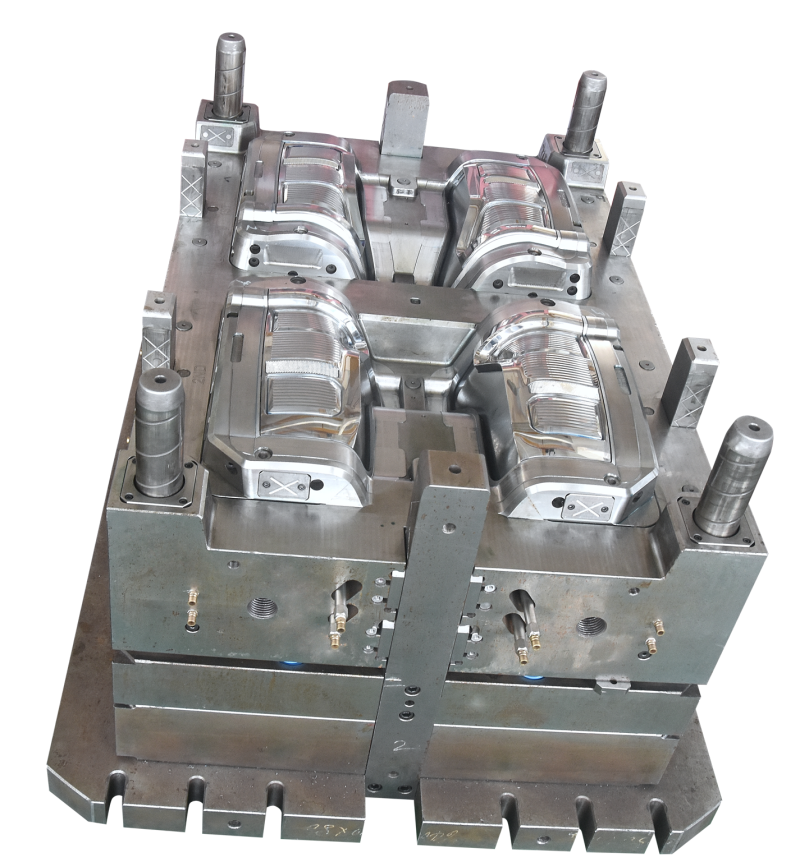

Modern dual-color molds, like the system in CN212826485U, incorporate motor-driven rotation for flawless color transitions. A base layer (e.g., red PMMA) is injected first. The mold then rotates 180° via a servo motor and guide rail system, aligning the part for the second shot (typically clear PC). This eliminates parting lines at critical optical surfaces, a key advantage over glued or overmolded alternatives.
2. Eliminating Cosmetic Defects
Conventional molds often leave visible ejector pin marks or color bleed lines. Innovations like angled seams (15°–25°) and relocated ejector pins—now positioned beneath non-optical surfaces—ensure a pristine finish. As patent CN109747107A reveals, this subtle redesign prevents light refraction artifacts, which is crucial for OEM-grade clarity.
3. Virtual Prototyping with Moldflow
Thermoplastic overlap simulations in Moldflow predict material flow dynamics and potential defects before cutting steel. Engineers analyze:
- Shear stress at material interfaces
- Cooling-induced warpage
- Injection pressure differentials
This virtual validation slashes trial cycles by 40% and prevents costly mold reworks.
